AWS CloudWatch Monitoring with Grafana

Hybrid cloud is the new reality. Therefore, you will need a single tool, general purpose dashboard and graph composer for your global infrastructure. That’s where Grafana comes into play. Due to it’s pluggable architecture, you have access to many widgets and plugins to create interactive & user-friendly dashboards. In this post, I will walk you through on how to create dashboards in Grafana to monitor in real-time your EC2 instances based on metrics collected in AWS CloudWatch.

To get started, create an IAM role with the following IAM policy:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "1",
"Effect": "Allow",
"Action": [
"cloudwatch:PutMetricData",
"cloudwatch:GetMetricStatistics",
"cloudwatch:GetMetricData",
"cloudwatch:ListMetrics"
],
"Resource": "*"
}
]
}

Launch an EC2 instance with the user-data script below. Make sure to associate to the instance the role we created earlier:

1
2
3
4
#!/bin/sh
yum install -y https://s3-us-west-2.amazonaws.com/grafana-releases/release/grafana-5.0.3-1.x86_64.rpm
service grafana-server start
/sbin/chkconfig --add grafana-server

On the security group section, allow inbound traffic on port 3000 (Grafana Dashboard).

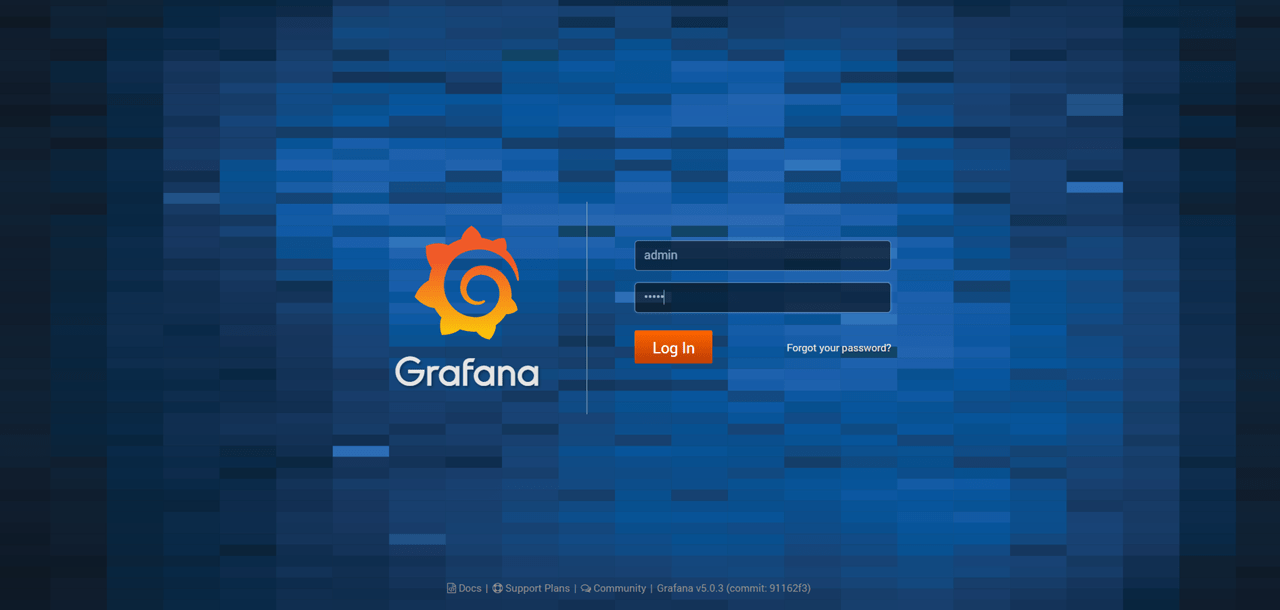

Once created, point your browser to the http://instance_dns_name:3000, you should see Grafana Login page (default credentials: admin/admin) :

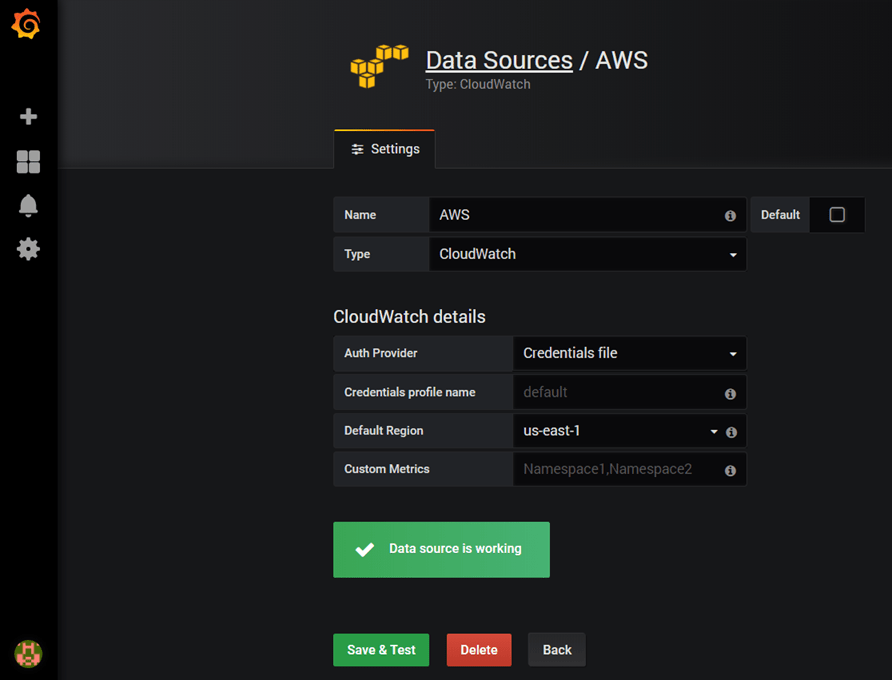

Grafana ships with built in support for CloudWatch, so add a new data source:



Note: In case you are using an IAM Role (recommended), keep the other fields empty as above, otherwise, create a new file at ~/.aws/credentials with your own AWS Access Key & Secret key.

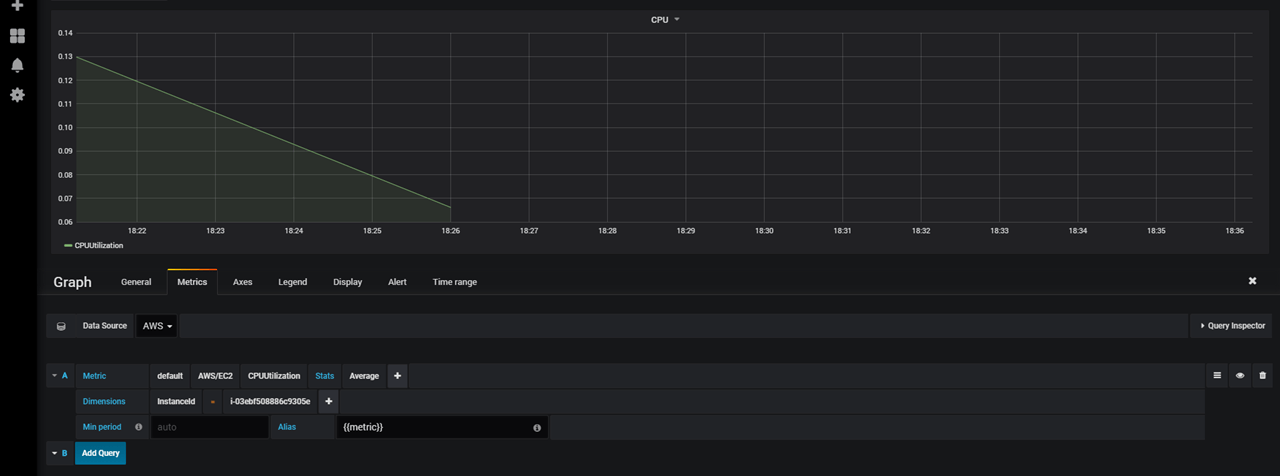

Create a new dashboard, and add new graph to the panel, select AWS/EC2 as namespace, CPUUtilization as metric, and the instance id of the instance you want to monitor in the dimension field:



That’s great !

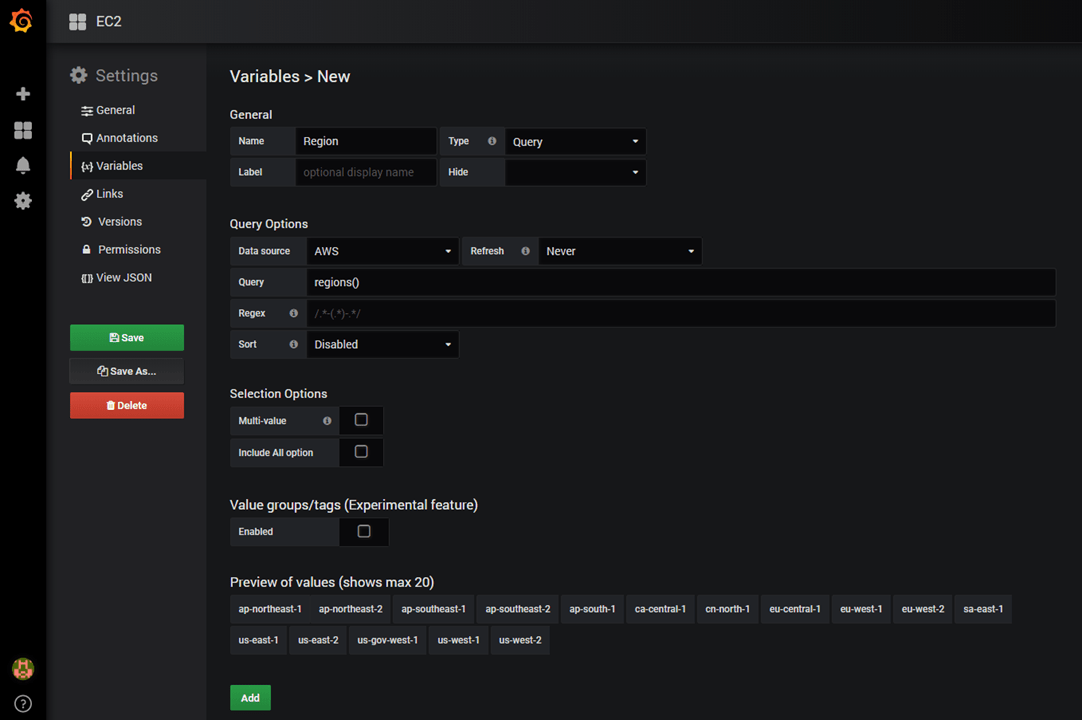

Well, instead of hard-coding the InstanceId in the query, we can use a feature in Grafana called “Query Variables“. Create a new variable to hold list of AWS supported regions :

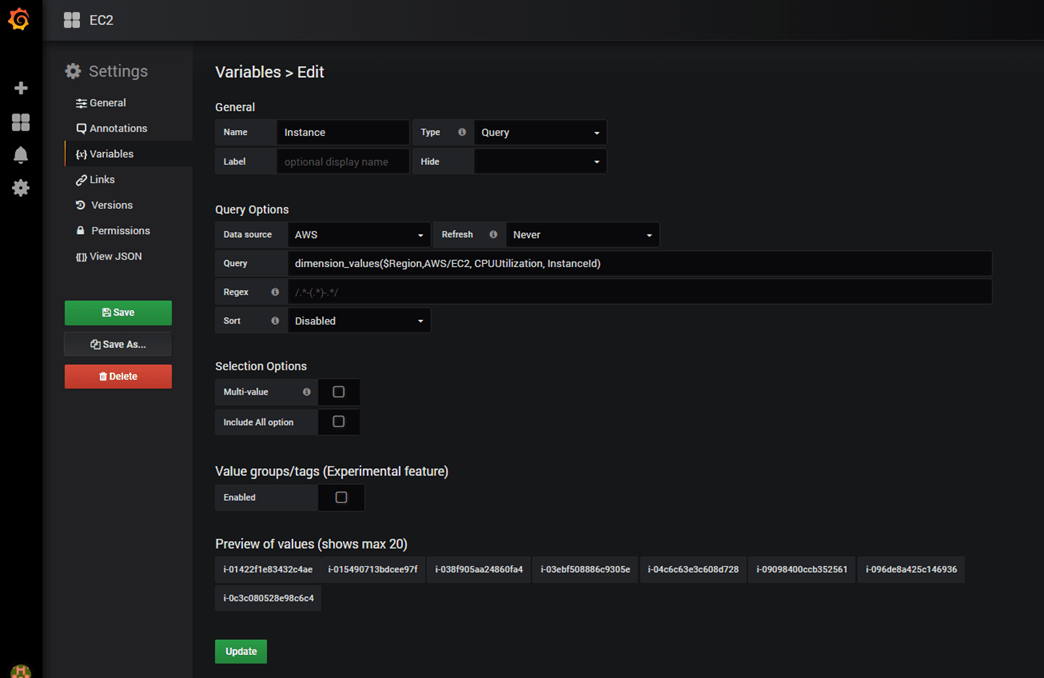

And, create a second variable to store list of instances ids per selected AWS region:

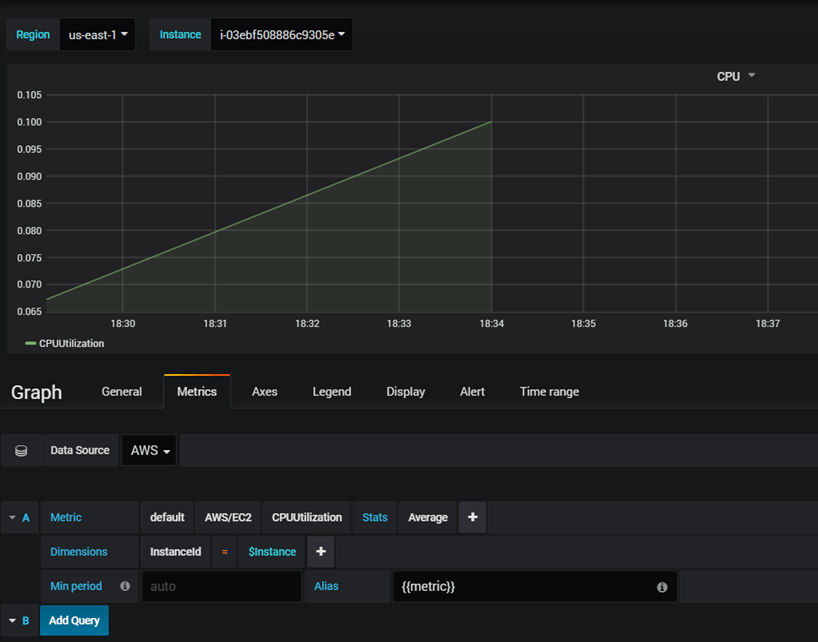

Now, go back to your graph and update the query as below:

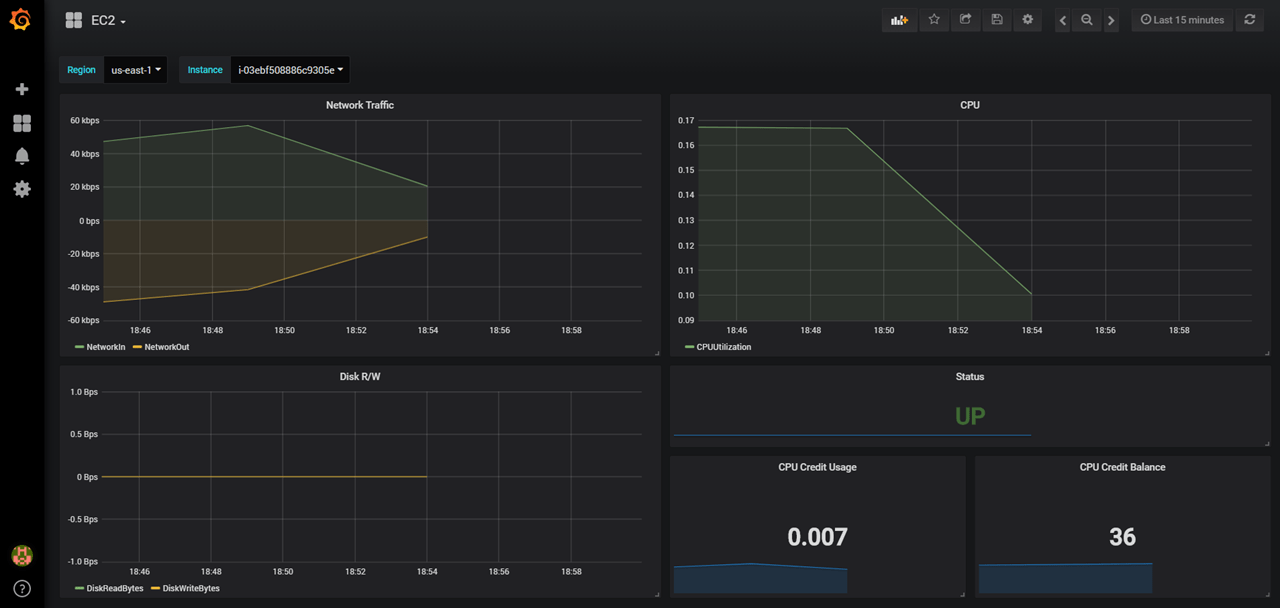

That’s it, go ahead and create other widgets:



Note: You can download the dashboard from GitHub.

Now you’re ready to build interactive & dynamic dashboards for your CloudWatch metrics.

Drop your comments, feedback, or suggestions below — or connect with me directly on Twitter @mlabouardy.

Publish Custom Metrics to AWS CloudWatch

AWS Autoscaling Groups can only scale in response to metrics in CloudWatch and most of the default metrics are not sufficient for predictive scaling. That’s why you need to publish your custom metrics to CloudWatch.

I was surfing the internet as usual, and I couldn’t find any post talking about how to publish custom metrics to AWS CloudWatch, and because I’m a Gopher, I got my hand dirty and I wrote my own script in Go.

You can publish your own metrics to CloudWatch using the AWS Go SDK:

1
2
3
4
5
6
7
8
9
10
11
func Publish(metricData []cloudwatch.MetricDatum, namespace string) {
svc := cloudwatch.New(c.Config)
req := svc.PutMetricDataRequest(&cloudwatch.PutMetricDataInput{
MetricData: metricData,
Namespace: &namespace,
})
_, err := req.Send()
if err != nil {
log.Fatal(err)
}
}

To collect metrics about memory for example, you can either parse output of command ‘free -m’ or use a third-party library like gopsutil:

1
memoryMetrics, err := mem.VirtualMemory()

The memoryMetrics object expose multiple metrics:

  • Memory used
  • Memory available
  • Buffers
  • Swap cached
  • Page Tables
  • etc

Each metric will be published with an InstanceID dimension. To get the instance id, you can query the meta-data:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
func GetInstanceID() (string, error) {
value := os.Getenv("AWS_INSTANCE_ID")
if len(value) > 0 {
return value, nil
}
client := &http.Client{}
req, err := http.NewRequest("GET", "http://169.254.169.254/latest/meta-data/instance-id", nil)
if err != nil {
return "", err
}

resp, err := client.Do(req)
if err != nil {
return "", err
}
defer resp.Body.Close()

data, err := ioutil.ReadAll(resp.Body)
if err != nil {
return "", err
}
return string(data), nil
}


What if I’m not a Gopher ? well, don’t freak out, I built a simple CLI which doesn’t require any Go knowledge or dependencies to be installed (AWS CloudWatch Monitoring Scripts requires Perl dependencies) and moreover it’s cross-platform.

The CLI collects the following metrics:

  • Memory: utilization, used, available.
  • Swap: utilization, used, free.
  • Disk: utilization, used, available.
  • Network: packets in/out, bytes in/out, errors in/out.
  • Docker: memory & cpu per container.

The CLI have been tested on instances using the following AMIs (64-bit versions):

  • Amazon Linux
  • Amazon Linux 2
  • Ubuntu 16.04
  • Microsoft Windows Server

To get started, find the appropriate package for your instance and download it. For linux:

1
2
wget https://s3.us-east-1.amazonaws.com/mon-put-instance-data/1.0.0/linux/mon-put-instance-data
chmod +x mon-put-instance-data

After you install the CLI, you may need to add the path to the executable file to your PATH variable. Then, issue the following command:

1
mon-put-instance-data --memory --swap --network --docker --interval 1

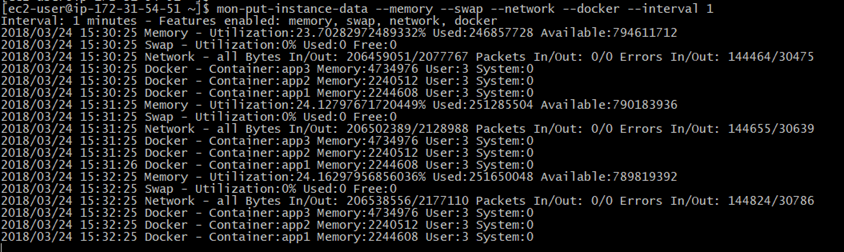

The command above will collect memory, swap, network & docker containers resource utilization on the current system.

Note: ensure an IAM role is associated with your instance, verify that it grants permission to perform cloudwatch:PutMetricData.

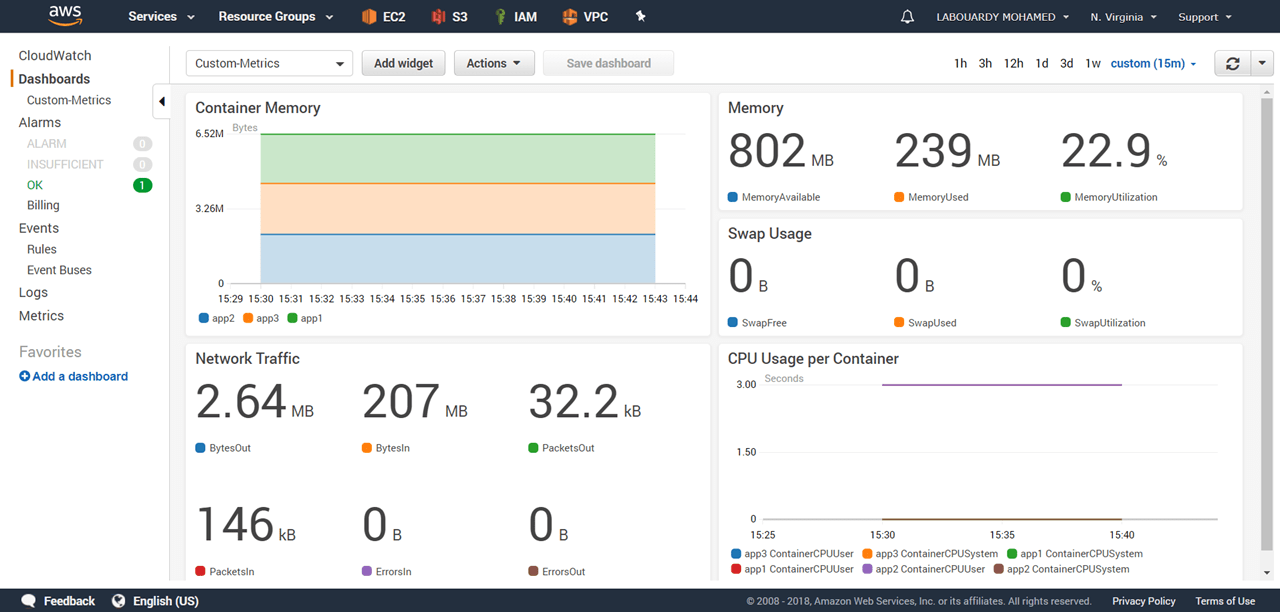

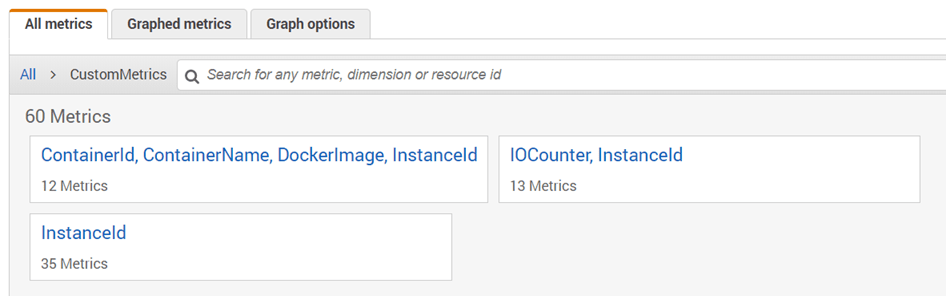

Now that we’ve written custom metrics to CloudWatch. You can view statistical graphs of your published metrics with the AWS Management Console:



You can create your own interactive and dynamic Dashboard based on these metrics:



Hope it helps ! The CLI is still in its early stages, so you are welcome to contribute to the project on GitHub.

Drop your comments, feedback, or suggestions below — or connect with me directly on Twitter @mlabouardy.
