Attach an IAM Role to an EC2 Instance with CloudFormation

CloudFormation allows you to manage your AWS infrastructure by defining it in code.

In this post, I will show you guys how to create an EC2 instance and attach an IAM role to it so you can access your S3 buckets.

First, you’ll need a template that specifies the resources that you want in your stack. For this step, you use a sample template that I already prepared:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
{
"AWSTemplateFormatVersion" : "2010-09-09",
"Description" : "Attach IAM Role to an EC2",
"Parameters" : {
"KeyName" : {
"Description" : "EC2 Instance SSH Key",
"Type" : "AWS::EC2::KeyPair::KeyName"
},
"InstanceType" : {
"Description" : "EC2 instance specs configuration",
"Type" : "String",
"Default" : "t2.micro",
"AllowedValues" : ["t2.micro", "t2.small", "t2.medium"]
}
},
"Mappings" : {
"AMIs" : {
"us-east-1" : {
"Name" : "ami-8c1be5f6"
},
"us-east-2" : {
"Name" : "ami-c5062ba0"
},
"eu-west-1" : {
"Name" : "ami-acd005d5"
},
"ap-southeast-2" : {
"Name" : "ami-8536d6e7"
}
}
},
"Resources" : {
"Test" : {
"Type" : "AWS::EC2::Instance",
"Properties" : {
"InstanceType" : {
"Ref" : "InstanceType"
},
"ImageId" : {
"Fn::FindInMap" : [
"AMIs",
{
"Ref" : "AWS::Region"
},
"Name"
]
},
"KeyName" : {
"Ref" : "KeyName"
},
"IamInstanceProfile" : {
"Ref" : "ListS3BucketsInstanceProfile"
},
"SecurityGroupIds" : [
{
"Ref" : "SSHAccessSG"
}
],
"Tags" : [
{
"Key" : "Name",
"Value" : "Test"
}
]
}
},
"SSHAccessSG" : {
"Type" : "AWS::EC2::SecurityGroup",
"Properties" : {
"GroupDescription" : "Allow SSH access from anywhere",
"SecurityGroupIngress" : [
{
"FromPort" : "22",
"ToPort" : "22",
"IpProtocol" : "tcp",
"CidrIp" : "0.0.0.0/0"
}
],
"Tags" : [
{
"Key" : "Name",
"Value" : "SSHAccessSG"
}
]
}
},
"ListS3BucketsInstanceProfile" : {
"Type" : "AWS::IAM::InstanceProfile",
"Properties" : {
"Path" : "/",
"Roles" : [
{
"Ref" : "ListS3BucketsRole"
}
]
}
},
"ListS3BucketsPolicy" : {
"Type" : "AWS::IAM::Policy",
"Properties" : {
"PolicyName" : "ListS3BucketsPolicy",
"PolicyDocument" : {
"Statement" : [
{
"Effect" : "Allow",
"Action" : [
"s3:List*"
],
"Resource" : "*"
}
]
},
"Roles" : [
{
"Ref" : "ListS3BucketsRole"
}
]
}
},
"ListS3BucketsRole" : {
"Type" : "AWS::IAM::Role",
"Properties" : {
"AssumeRolePolicyDocument": {
"Version" : "2012-10-17",
"Statement" : [
{
"Effect" : "Allow",
"Principal" : {
"Service" : ["ec2.amazonaws.com"]
},
"Action" : [
"sts:AssumeRole"
]
}
]
},
"Path" : "/"
}
}
},
"Outputs" : {
"EC2" : {
"Description" : "EC2 IP address",
"Value" : {
"Fn::Join" : [
"",
[
"ssh ec2-user@",
{
"Fn::GetAtt" : [
"Test",
"PublicIp"
]
},
" -i ",
{
"Ref" : "KeyName"
},
".pem"
]
]
}
}
}
}

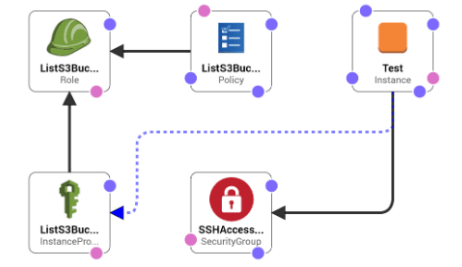

The template creates a basic EC2 instance that uses an IAM Role with S3 List Policy. It also creates a security group which allows SSH access from anywhere.

Note: I used also the Parameters section to declare values that can be passed to the template when you create the stack.

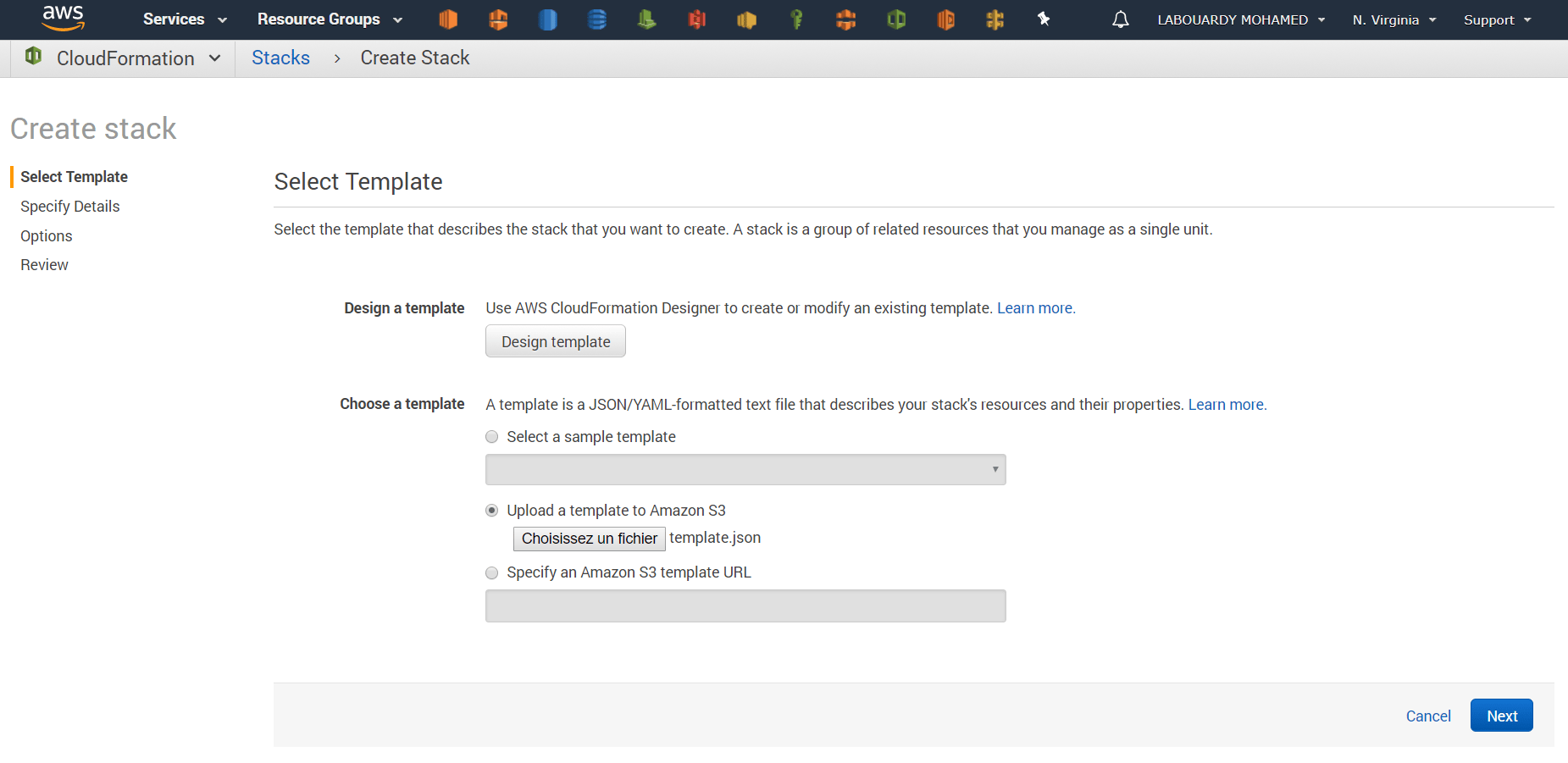

Now we defined the template. Sign in to AWS Management Console then navigate to CloudFormation, and click on “Create Stack“. Upload the JSON file:

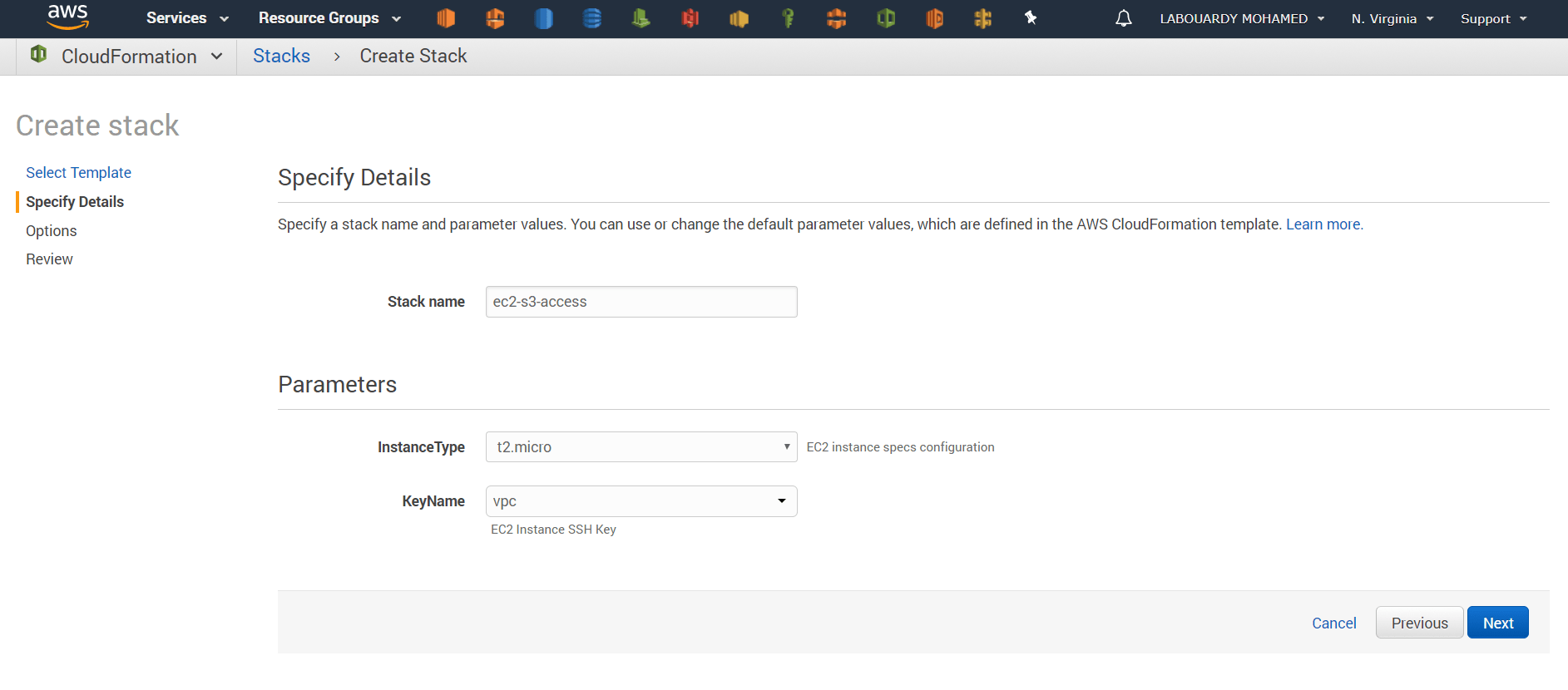

You would be asked to assign a name to this stack, and choose your EC2 specs configuration & SSH KeyPair:

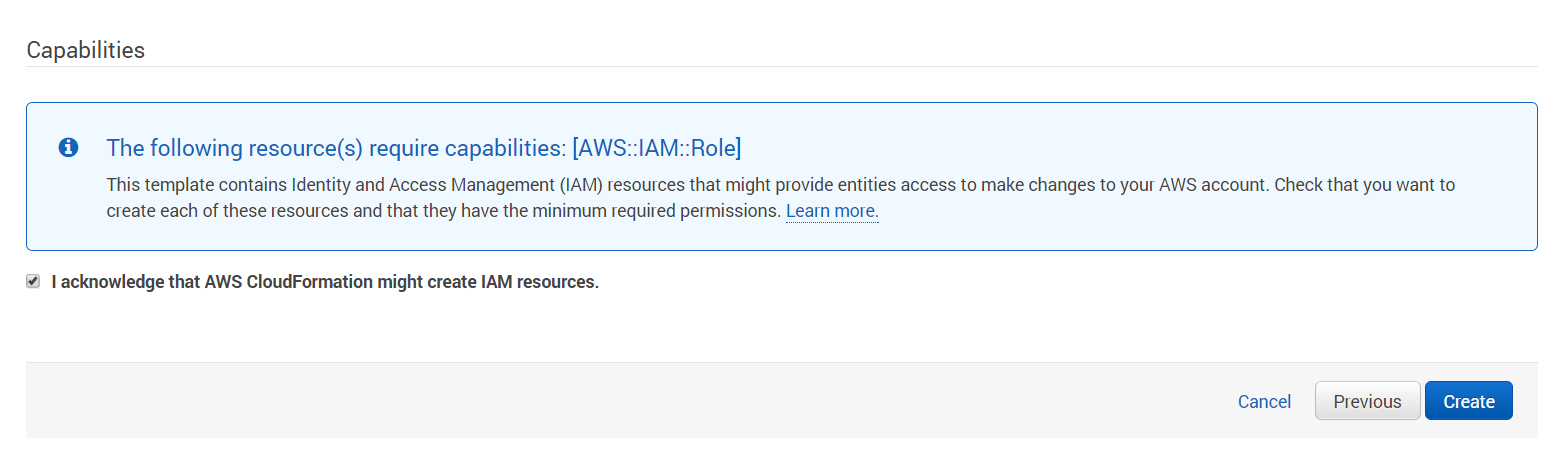

Make sure to check the box “I ackownledge the AWS CloudFormation might create IAM resources” in order to create the IAM Policy & Role:

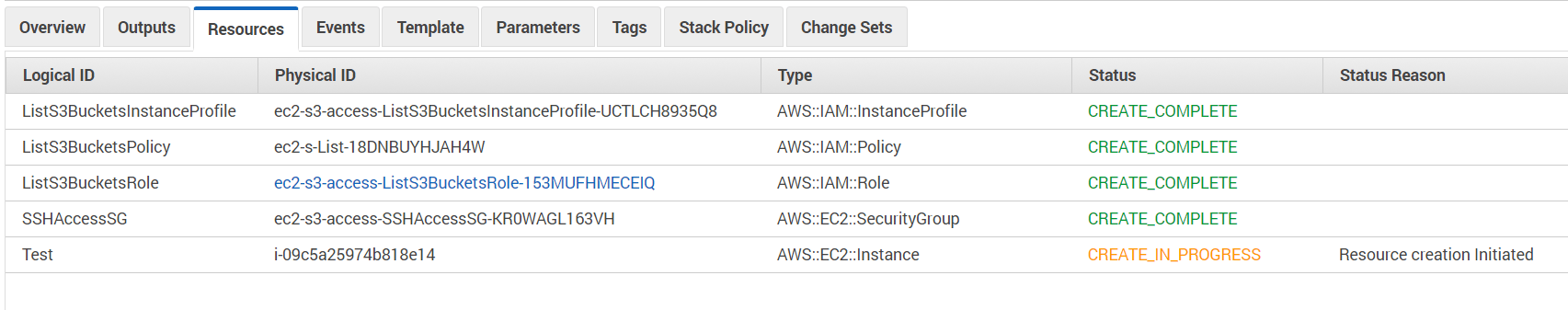

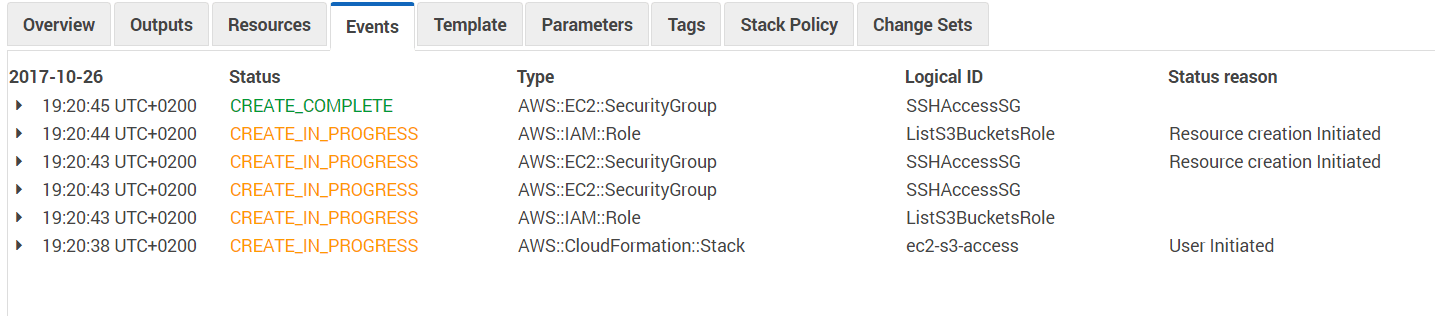

Once launched, you will get the following screen with launching process events:



After a while, you will get the CREATE_COMPLETE message in the status tab:

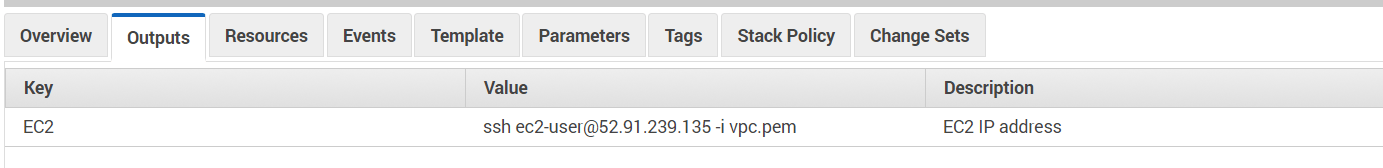

Once done, on the output tab, you should see how to connect via SSH to your instance:

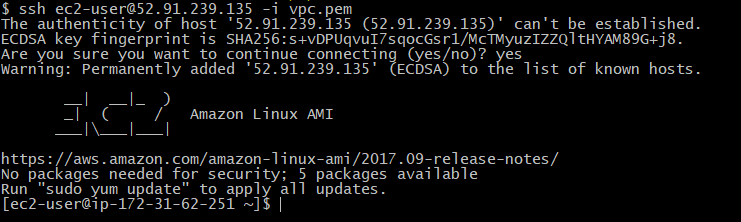

If you point your terminal to the value shown in the output tab, you should be able to connect via SSH to server:

1
ssh ec2-user@52.91.239.135 -i key.pem

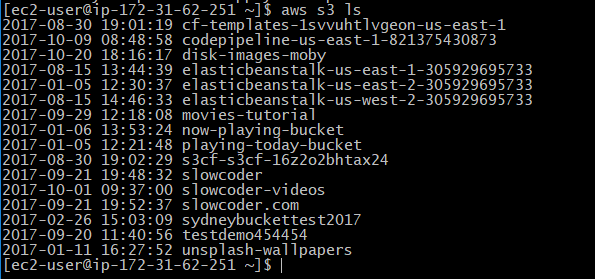

Let’s check if we can list the S3 buckets using the AWS CLI:

1
aws s3 ls


Awesome ! so we are able to list the buckets, but what if we want to create a new bucket:



It didn’t work, and it’s normal because the IAM Role attached to the instance doesn’t have enough permission (CreateBucket action).
