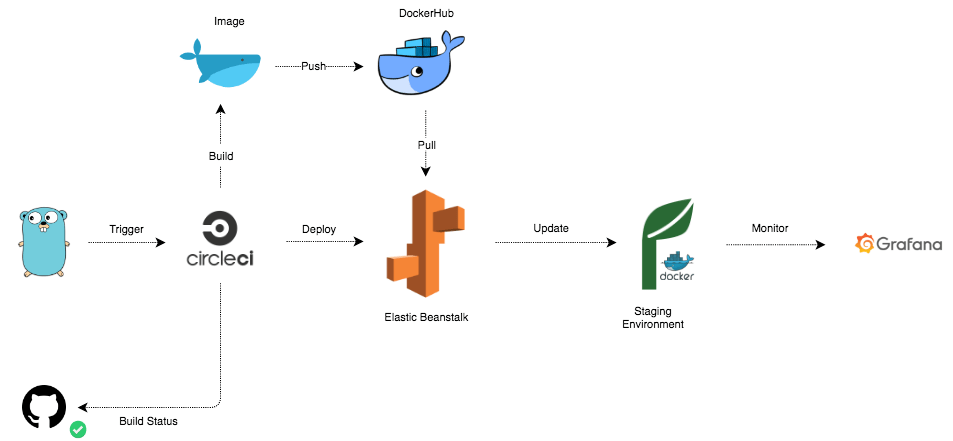

AWS Elastic Beanstalk is one of the most used PaaS today, it allows you to deploy your application without provisioning the underlying infrastructure while maintaining the high availability of your application. However, it’s painful to use due to the lack of documentation and real-world scenarios. In this post, I will walk you through how to use Elastic Beanstalk to deploy Docker containers from scratch. Followed by how to automate your deployment process with a Continuous Integration pipeline. At the end of this post, you should be familiar with advanced topics like debugging and monitoring of your applications in EB.

1 – Environment Setup

To get started, create a new Application using the following AWS CLI command:

1
2

aws elasticbeanstalk create-application --application-name avengers \
    --region eu-west-3

Create a new environment. Let’s call it “staging” :

1
2
3
4
5

aws elasticbeanstalk create-environment --application-name avengers \
    --environment-name staging \
    --solution-stack-name "64bit Amazon Linux 2017.09 v2.9.2 running Docker 17.12.0-ce" \
    --option-settings file://options.json \
    --region eu-west-3

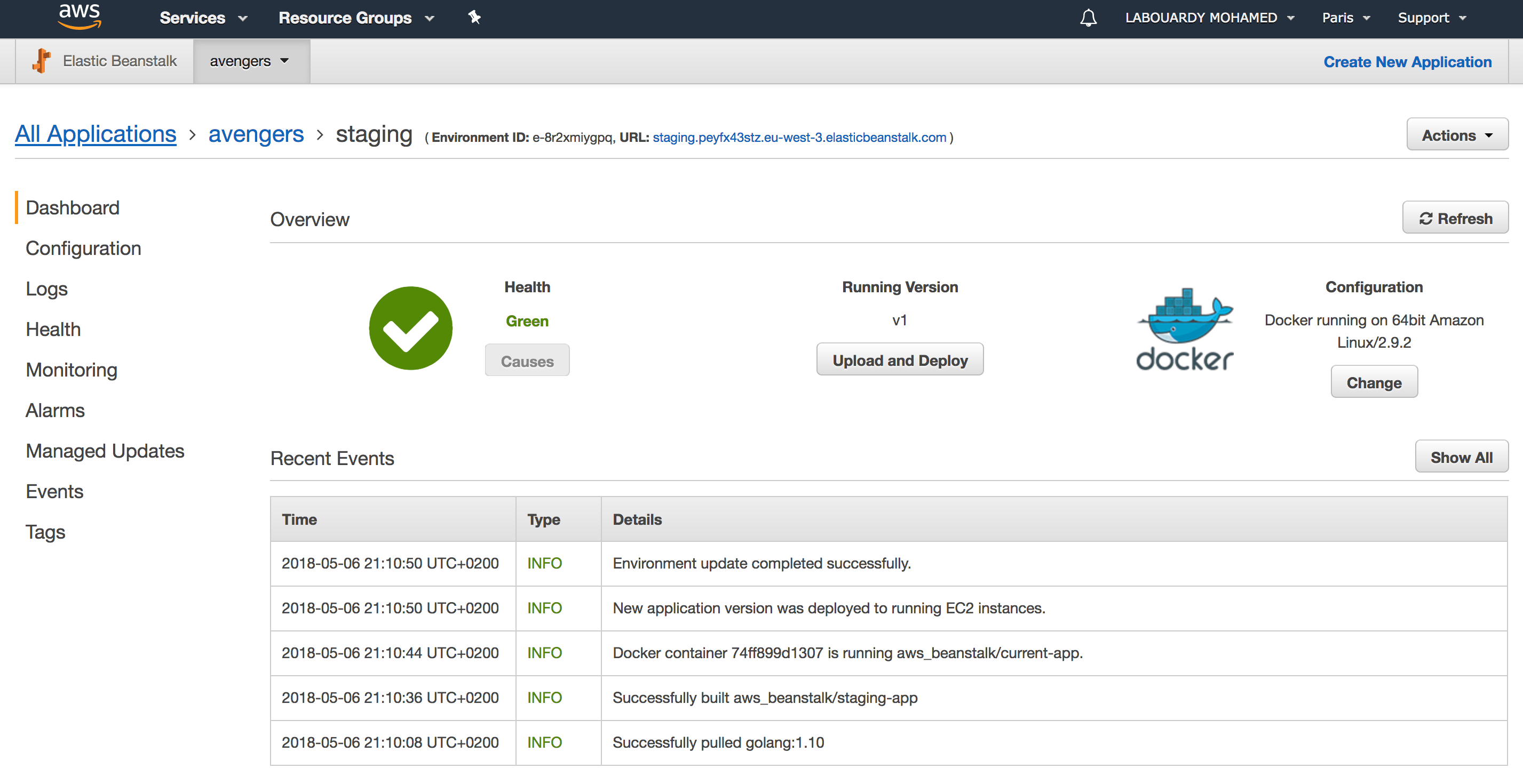

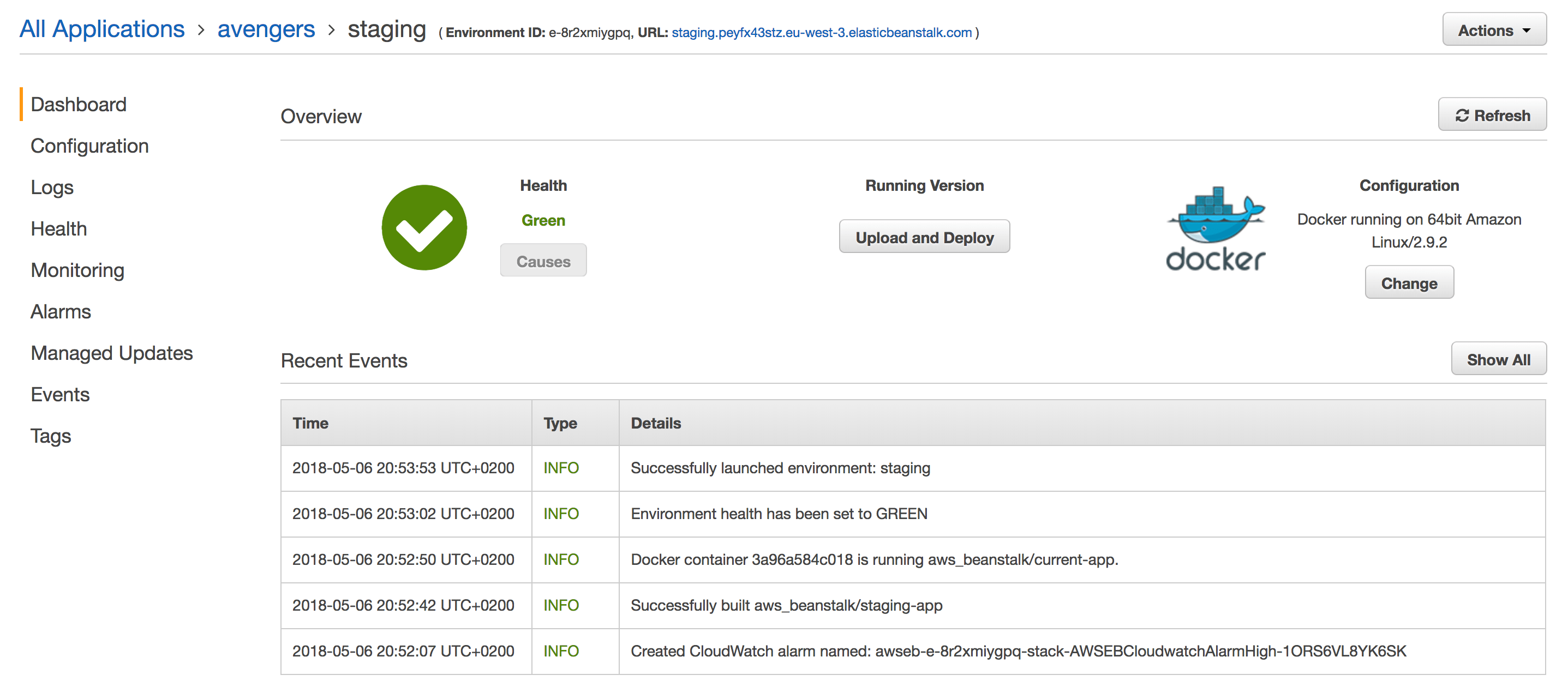

Head back to AWS Elastic Beanstalk Console, your new environment should be created:

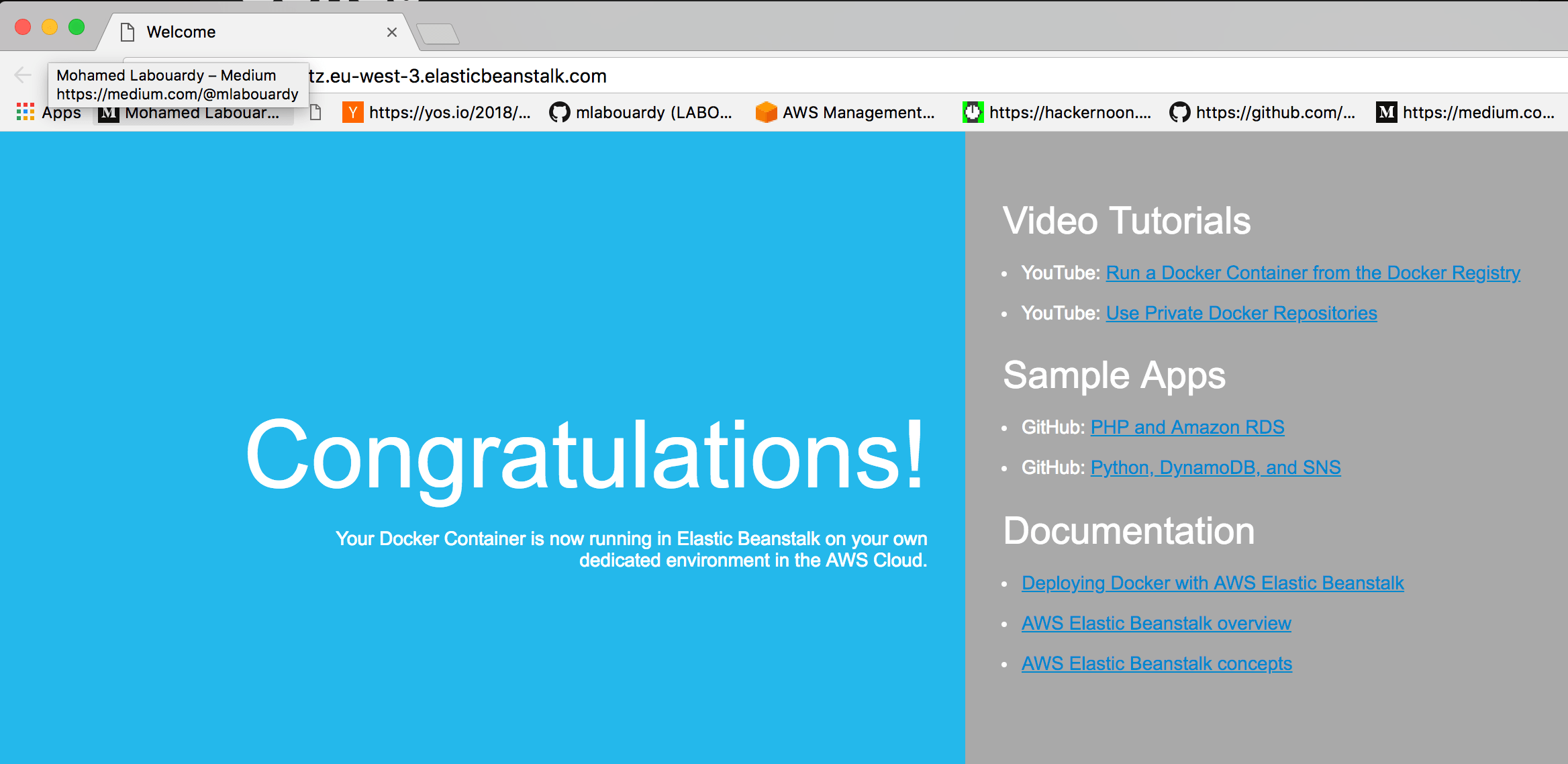

Point your browser to the environment URL, a sample Docker application should be displayed:

Let’s deploy our application. I wrote a small web application in Go to return a list of Marvel Avengers (I see you Thanos 😉 )

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

package main

import (
	"encoding/json"
	"io/ioutil"
	"log"
	"net/http"
)

type Avenger struct {
	Character string `json:"character"`
	Name      string `json:"name"`
}

var avengers []Avenger

func init() {
	data, _ := ioutil.ReadFile("avengers.json")
	json.Unmarshal(data, &avengers)
}

func IndexHandler(w http.ResponseWriter, r *http.Request) {
	response, _ := json.Marshal(avengers)
	w.Header().Set("Content-Type", "application/json")
	w.WriteHeader(200)
	w.Write(response)
}

func main() {
	http.HandleFunc("/", IndexHandler)
	if err := http.ListenAndServe(":3000", nil); err != nil {
		log.Fatal(err)
	}
}

Next, we will create a Dockerfile to build the Docker image. Go is a compiled language, therefore we can use the Docker multi-stage feature to build a lightweight Docker image:

1
2
3
4
5
6
7
8
9
10
11
12
13

FROM golang:1.10 as builder
WORKDIR /go/src/github.com/mlabouardy/docker-eb-ci-mon
COPY main.go .
RUN CGO_ENABLED=0 GOOS=linux go build -a -installsuffix cgo -o app .

FROM alpine:latest
MAINTAINER mlabouardy
RUN apk --no-cache add ca-certificates
WORKDIR /root/
COPY --from=builder /go/src/github.com/mlabouardy/docker-eb-ci-mon/app .
COPY avengers.json .
EXPOSE 3000
CMD ["./app"]

Next, we create a Dockerrun.aws.json that describes how the container will be deployed in Elastic Beanstalk:

1
2
3
4
5
6
7
8
9
10
11
12

{
    "AWSEBDockerrunVersion": "1",
    "Image": {
      "Name": "mlabouardy/avengers",
      "Update": "true"
    },
    "Ports": [
      {
        "ContainerPort": "3000"
      }
    ]
}

Now the application is defined, create an application bundle by creating a ZIP package:

1

zip -r deployment.zip .

Then, create a S3 bucket to store the different versions of your application bundles:

1

aws s3 mb s3://avengers-docker-eb --region AWS_REGION

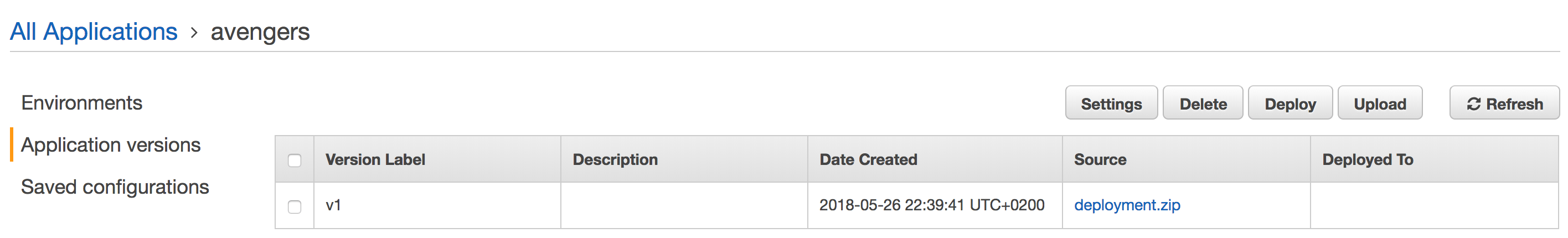

And create a new application version from the application bundle:

1
2
3
4
5

aws elasticbeanstalk create-application-version --application-name avengers \
    --version-label v1 \
    --source-bundle S3Bucket="avengers-docker-eb",S3Key="deployment.zip" \
    --auto-create-application \
    --region AWS_REGION

Finally, deploy the version to the staging environment:

1
2
3

aws elasticbeanstalk update-environment --application-name avengers \
    --environment-name staging \
    --version-label v1 --region AWS_REGION

Give it a few seconds while it’s deploying the new version:

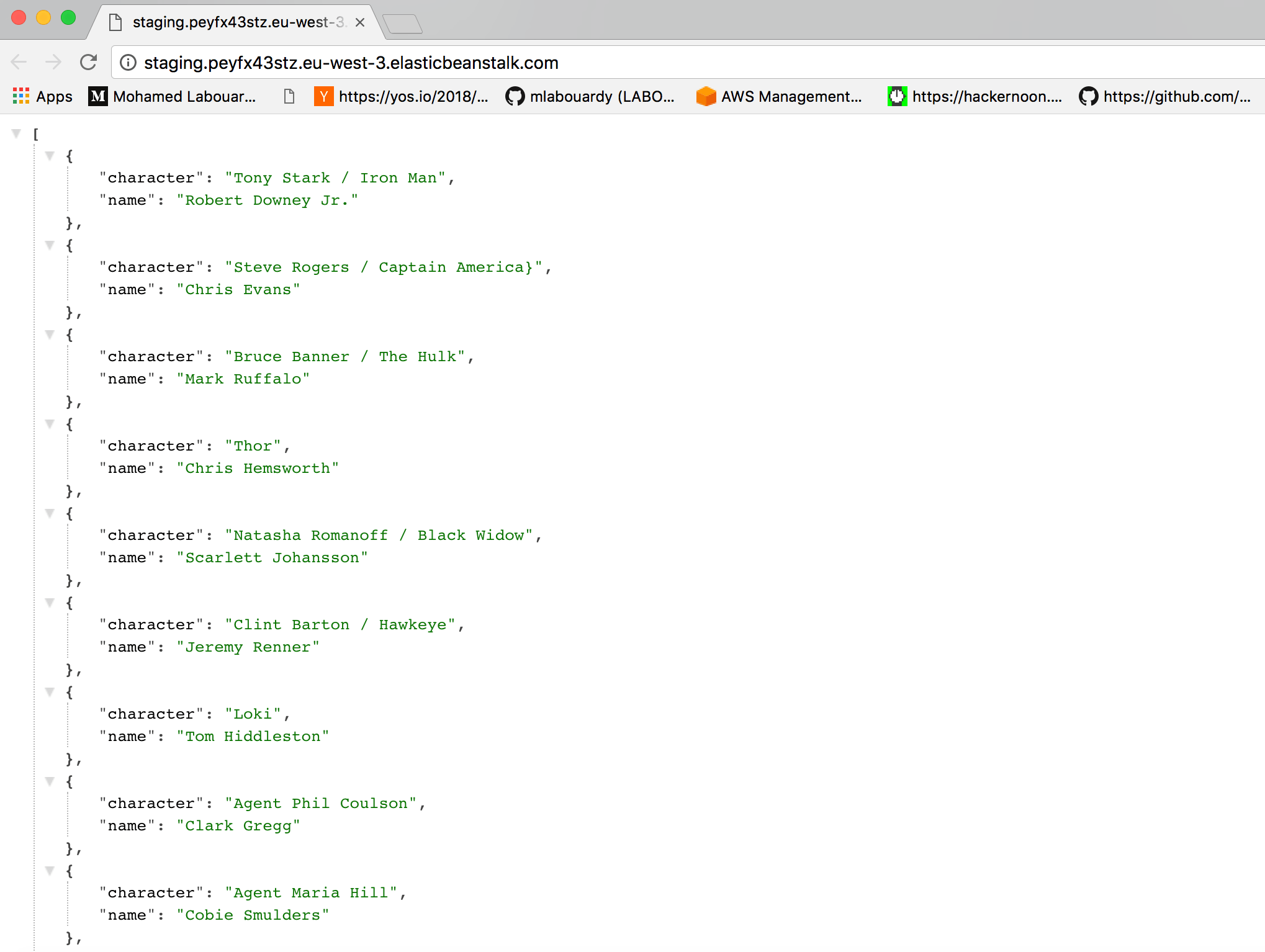

Then, repoint your browser to the environment URL, a list of Avengers will be returned in a JSON format as follows:

Now that our Docker application is deployed, let’s automate this process by setting up a CI/CD pipeline.

2 – CI/CD Pipeline

I opt for CircleCI, but you’re free to use whatever CI server you’re familiar with. The same steps can be applied.

Create a circle.yml file with the following content:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

version: 2
jobs:
  build:
    docker:
      - image: circleci/golang:1.10

    working_directory: /go/src/github.com/mlabouardy/docker-eb-ci-mon

    steps:
      - checkout

      - setup_remote_docker

      - run:
         name: Install AWS CLI
         command: |
          sudo apt-get update
          sudo apt-get install -y awscli

      - run:
          name: Test
          command: go test

      - run:
          name: Build
          command: docker build -t mlabouardy/avengers:latest .

      - run:
          name: Push
          command: |
            docker login -u$DOCKERHUB_LOGIN -p$DOCKERHUB_PASSWORD
            docker tag mlabouardy/avengers:latest mlabouardy/avengers:${CIRCLE_SHA1}
            docker push mlabouardy/avengers:latest
            docker push mlabouardy/avengers:${CIRCLE_SHA1}

      - run:
          name: Deploy
          command: |
            zip -r deployment-${CIRCLE_SHA1}.zip .
            aws s3 cp deployment-${CIRCLE_SHA1}.zip s3://avengers-docker-eb --region eu-west-3
            aws elasticbeanstalk create-application-version --application-name avengers \
                --version-label ${CIRCLE_SHA1} --source-bundle S3Bucket="avengers-docker-eb",S3Key="deployment-${CIRCLE_SHA1}.zip" --region eu-west-3
            aws elasticbeanstalk update-environment --application-name avengers \
                --environment-name staging --version-label ${CIRCLE_SHA1} --region eu-west-3

The pipeline will firstly prepare the environment, installing the AWS CLI. Then run unit tests. Next, a Docker image will be built, then pushed to DockerHub. Last step is creating a new application bundle and deploying the bundle to Elastic Beanstalk.

In order to grant Circle CI permissions to call AWS operations, we need to create a new IAM user with following IAM policy:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "elasticbeanstalk:*",
                "s3:*",
                "ec2:*",
                "cloudformation:*",
                "autoscaling:*",
                "elasticloadbalancing:*"
            ],
            "Resource": "*"
        }
    ]
}

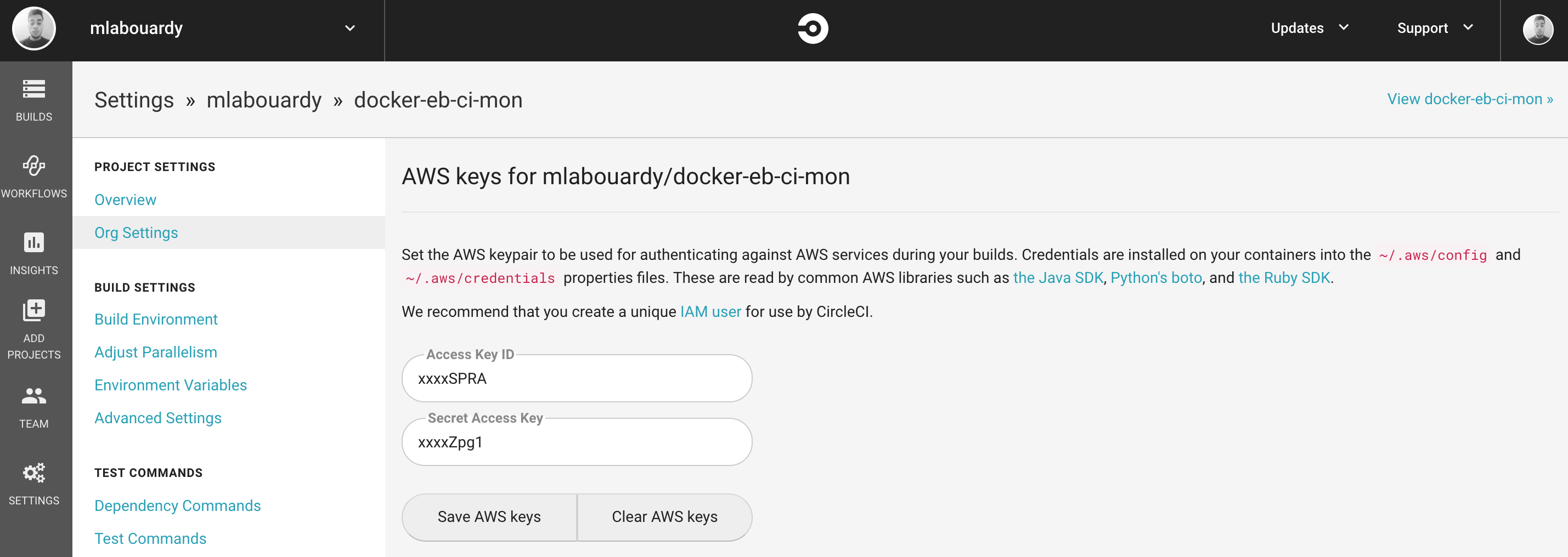

Generate AWS access & secret keys. Then, head back to Circle CI and click on the project settings and paste the credentials :

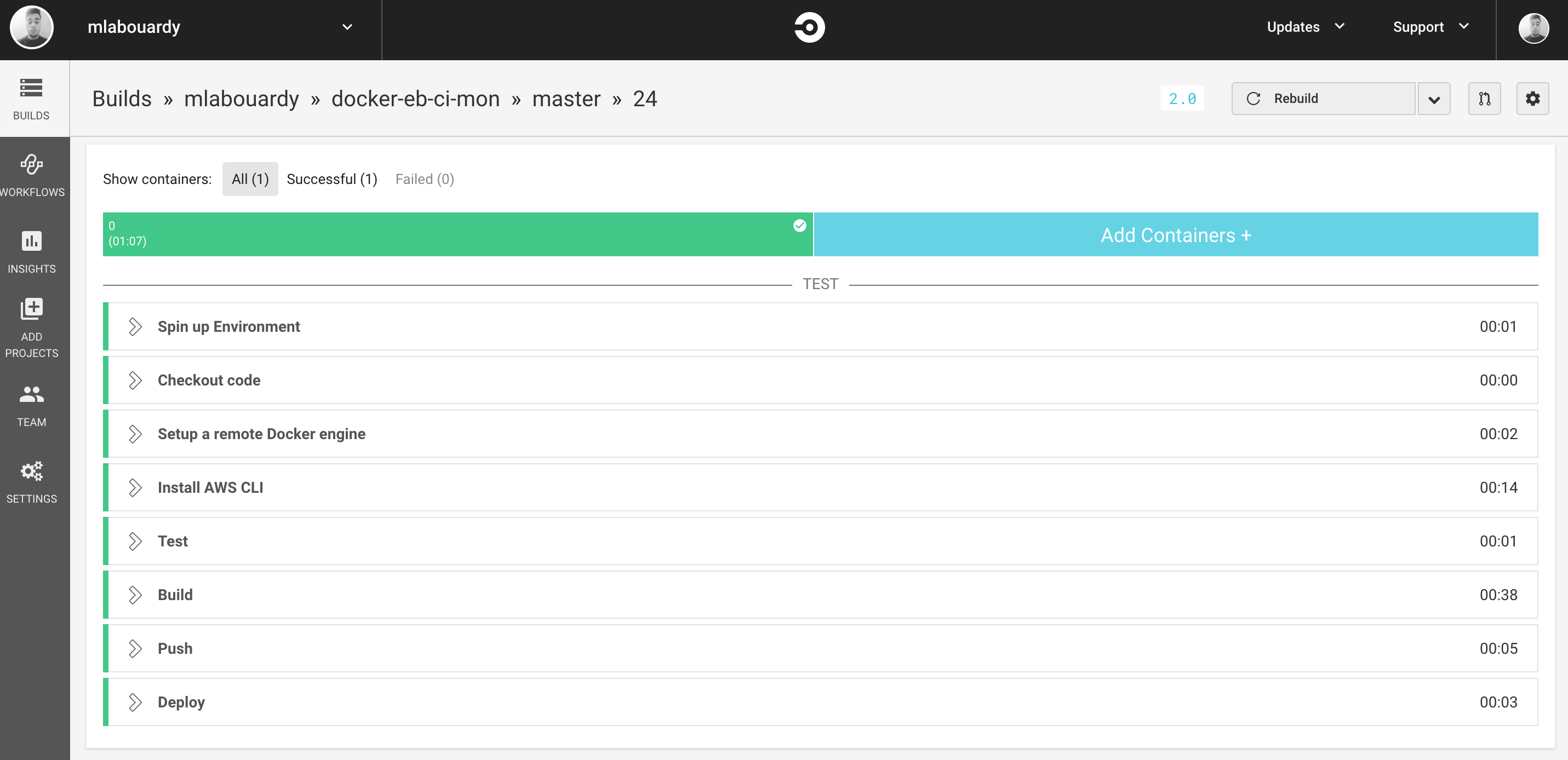

Now, everytime you push a change to your code repository, a build will be triggered:

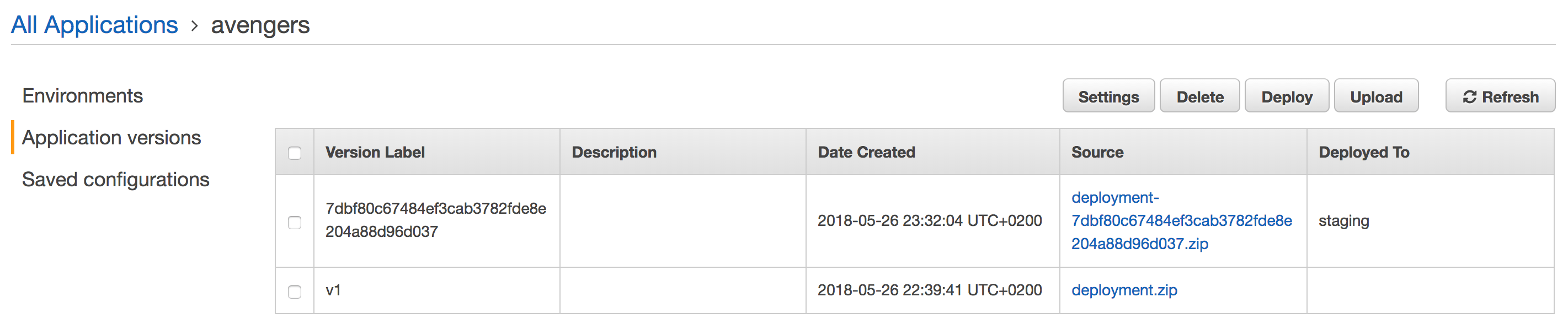

And a new version will be deployed automatically to Elastic Beanstalk:

3 – Monitoring

Monitoring your applications is mandatory. Unfortunately, CloudWatch doesn’t expose useful metrics like Memory usage of your applications in Elastic Beanstalk. Hence, in this part, we will solve this issue by creating our custom metrics.

I will install a data collector agent on the instance. The agent will collect metrics and push them to a time-series database.

To install the agent, we will use .ebextensions folder, on which we will create 3 configuration files:

• 01-install-telegraf.config: install Telegraf on the instance

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

container_commands:
    01downloadpackage:
        command: "wget https://dl.influxdata.com/telegraf/releases/telegraf-1.6.0-1.x86_64.rpm -O /tmp/telegraf.rpm"
        ignoreErrors: true
    02installpackage:
        command: "yum localinstall -y /tmp/telegraf.rpm"
        ignoreErrors: true
    03removepackage:
        command: "rm /tmp/telegraf.rpm"
        ignoreErrors: true
    04enablereboot:
        command: "chkconfig telegraf on"
        ignoreErrors: true
    05fixpermission:
        command: "usermod -a -G docker telegraf"
        ignoreErrors: true

• 02-config-file.config: create a Telegraf configuration file to collect system usage & docker containers metrics.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55

files:
    "/etc/telegraf/telegraf.conf":
        mode: "000666"
        owner: root
        group: root
        content: |
            [global_tags]
            hostname="Avengers"

            # Read metrics about CPU usage
            [[inputs.cpu]]
            percpu = false
            totalcpu = true
            fieldpass = [ "usage*" ]
            name_suffix = "_vm"

            # Read metrics about disk usagee
            [[inputs.disk]]
            fielddrop = [ "inodes*" ]
            mount_points=["/"]
            name_suffix = "_vm"

            # Read metrics about network usage
            [[inputs.net]]
            interfaces = [ "eth0", "eth1" ]
            fielddrop = [ "icmp*", "ip*", "tcp*", "udp*" ]
            name_suffix = "_vm"

            # Read metrics about memory usage
            [[inputs.mem]]
            name_suffix = "_vm"

            # Read metrics about swap memory usage
            [[inputs.swap]]
            name_suffix = "_vm"

            # Read metrics about system load and uptime
            [[inputs.system]]
            name_suffix = "_vm"

            # Read metrics from docker socket api
            [[inputs.docker]]
            endpoint = "unix:///var/run/docker.sock"
            container_names = []
            name_suffix = "_docker"

            [[outputs.influxdb]]
            database = "instances"
            urls = ["http://172.31.38.51:8086"]
            namepass = ["*_vm"]

            [[outputs.influxdb]]
            database = "containers"
            urls = ["http://172.31.38.51:8086"]
            namepass = ["*_docker"]

• 03-start-telegraf.config: start Telegraf agent.

1
2
3
4

container_commands:
    01starttelegraf:
        command: "service telegraf start"
        ignoreErrors: true

Once the application version is deployed to Elastic Beanstalk, metrics will be pushed to your timeseries database. In this example, I used InfluxDB as data storage and I created some dynamic Dashboards in Grafana to visualize metrics in real-time:

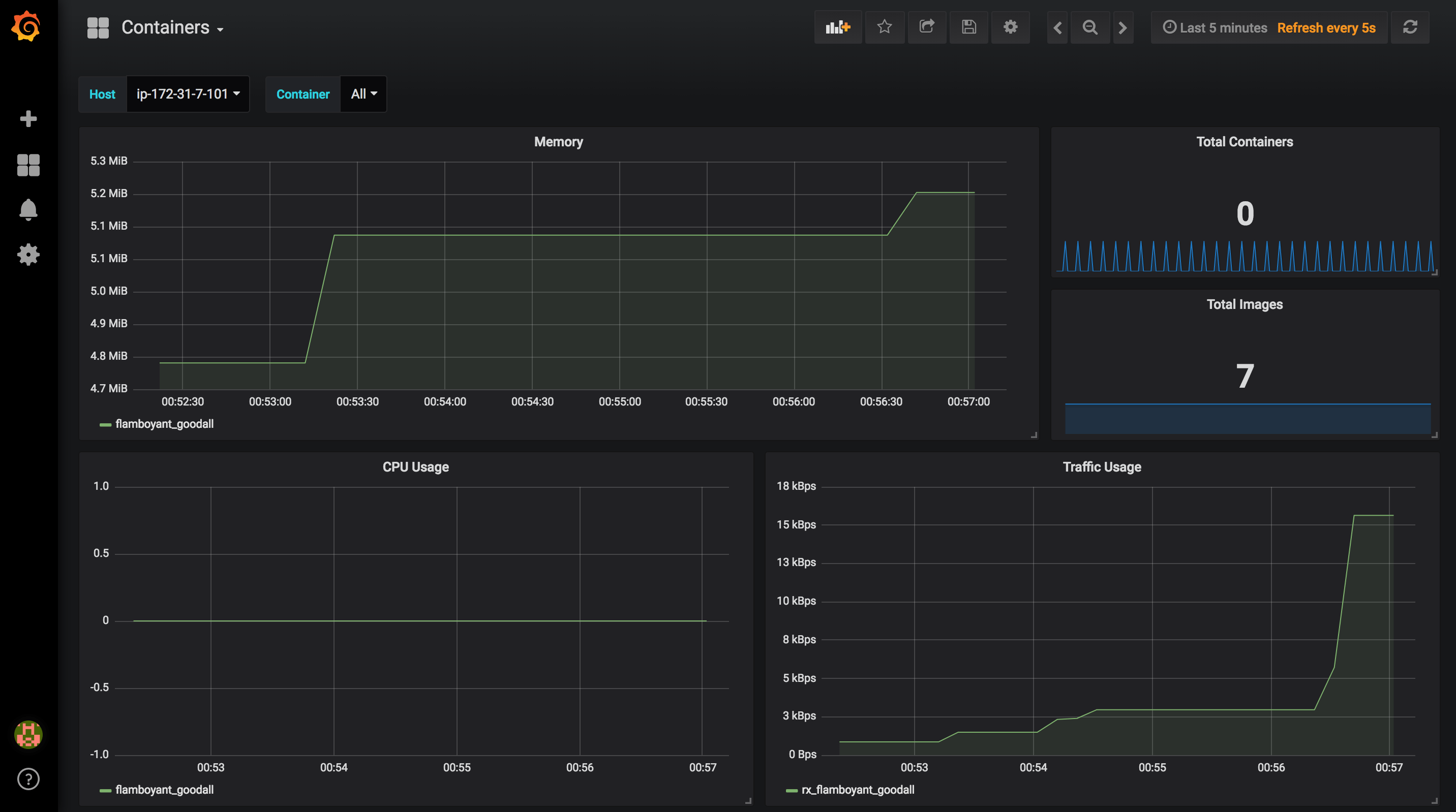

Containers:

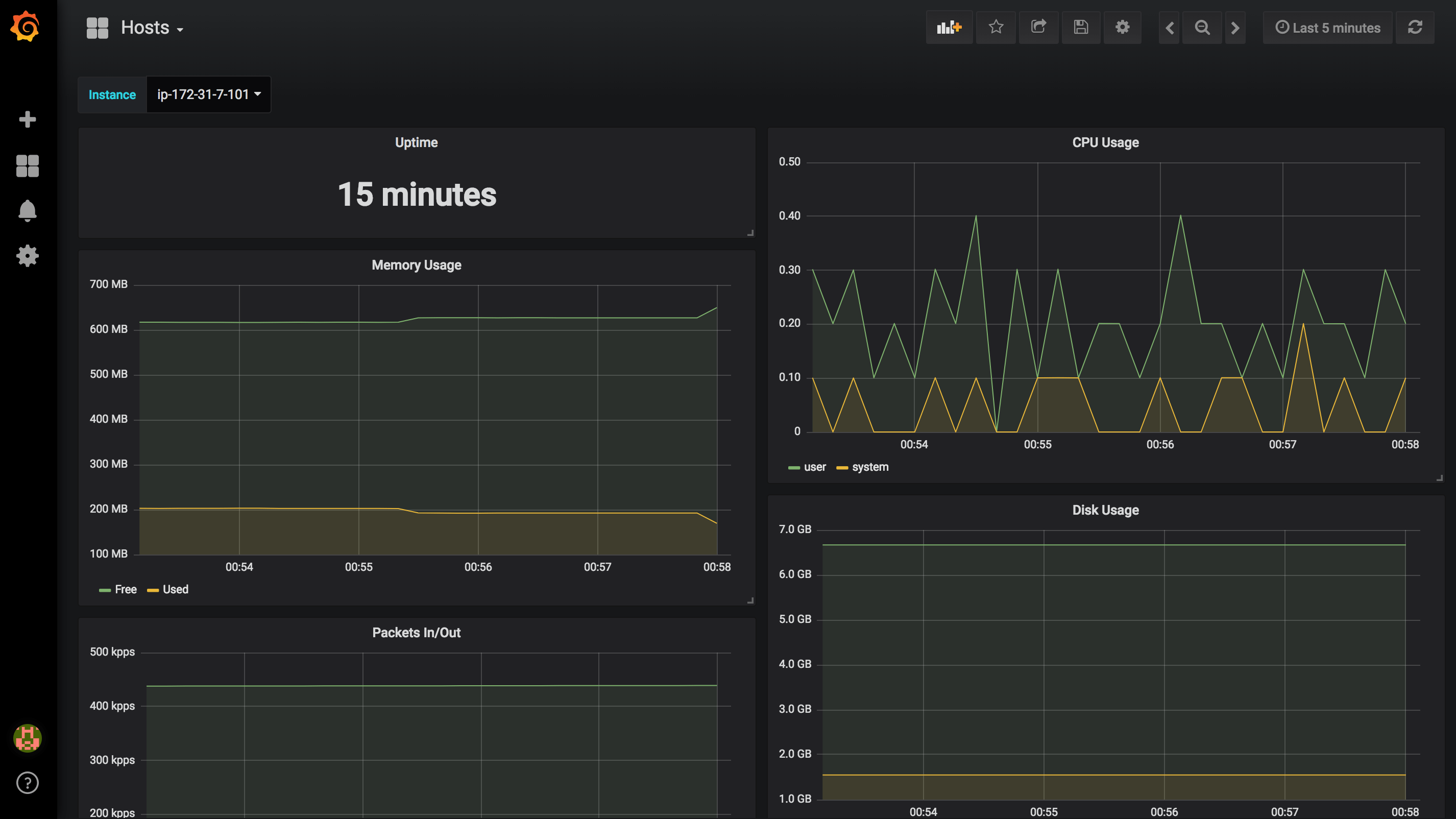

Hosts:

Note: for in-depth explaination on how to configure Telegraf, InfluxDB & Grafana read my previous article.

Full code can be found on my GitHub. Make sure to drop your comments, feedback, or suggestions below — or connect with me directly on Twitter @mlabouardy

In this quick tutorial, I will show you how to install Docker 🐋 on AWS EC2 instance and run your first Docker container.

1 – Setup EC2 instance

I already did a tutorial on how to create an EC2 instance, so I won’t repeat it. There are few ways you’ll want to differ from the tutorial:

We select the “Amazon Linux AMI 2017.03.1 (HVM), SSH Volume Type” as AMI. The exact versions may change with time.
We configure the security groups as below. This setting allows access to port 80 (HTTP) from anywhere, and SSH access also.

Go ahead and launch the instance, it will take couple of minutes:

2 – Install Docker

Once your instance is ready to use, connect via SSH to the server using the public DNS and the public key:

Once connected, use yum configuration manager to install Docker, by typing the following commands:

1
2

sudo yum update -y
sudo yum install -y docker

Next, start the docker service:

In order to user docker command without root privileges (sudo), we need to add ec2-user to the docker group:

1

sudo usermod -aG docker ec2-user

To verify that docker is correctly installed, just type:

As you can see the latest version of docker has been installed (v17.03.1-ce)

Congratulation ! 💫 🎉 you have now an EC2 instance with Docker installed.

3 – Deploy Docker Container

It’s time to run your first container 😁. We will create an nginx container with this command:

If we run the list command “docker ps”, we can see that a nginx container has been created from the nginx official image.

Finally, you visit your instance public DNS name in your browser, you should see something like this below:

Drop your comments, feedback, or suggestions below — or connect with me directly on Twitter @mlabouardy.
